High Temperature Stability Fiber Optic Patch Cord Indoor FC SC ST LC Connectors

Name: High Temperature Stability Fiber Optic Patch Cord Indoor FC SC ST LC Connectors
Brand: Qingying or QY
Price: 1 USD

China High Temperature Stability Fiber Optic Patch Cord Indoor FC SC ST LC Connectors wholesale

Brand Name : Qingying or QY

Model Number : 0.9mm 2.0mm 3.0mm Indoor FC LC SC ST Connectors For Fiber Optic Patch Cord

Certification : IEC 60794-2-10/11

Place of Origin : Dongguan China

MOQ : 20pcs

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 50000pcs per week

Packaging Details : 2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.

Jacket : PVC/LSZH

Fiber Type : OM1(62.5/125),OM2(50/125)

Ferrule Endface : UPC/APC

Connector Type : FC SC ST LC

Cable Length : 1/1.5/3/5/10/20m or custom

Catagory : Fiber Connectors

Cable Outer Diameter : 0.9/2.0/3.0mm

Model Name : Indoor FC SC ST LC Connectors For Fiber Optic Patch Cord

Contact Now

0.9mm 2.0mm 3.0mm Indoor FC SC ST Connectors For Fiber Optic Patch Cord

Product Description

Both ends of the optical fiber patch cord transceiver module wavelength must be consistent, that is to say the two ends of the optical fibre optical module must be the same wavelength, the simple discrimination method is the light module to the colour line.

Optical fiber in use not excessive bending and winding, this will increase the light attenuation in the transmission process. Fiber jumper after use must use to protect the optical fiber attachment, dust and oil will damage the fiber coupling.

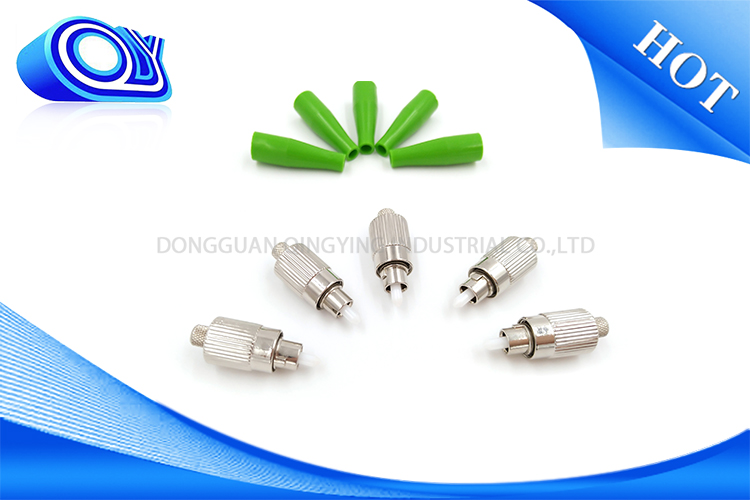

This high precision, ceramic ferrule connector is equipped with an anti rotation key, reducing fiber endface damage and rotational alignment sensitivity of the fiber.

Technical specifications:

Content		Testing Condition	(dB)
			SM			MM
			APC	UPC	PC
Optical Performance	IL(dB)	1310/1550nm LD Light	0.2	0.2	0.2	0.2
	RL(dB)	1310/1550nm LD Light	65	55	50	35
Environment Performance	High Temperature	+85℃,168H	0.2
	Temperature cycle	-40~+75℃,21cycle,168H	0.2
	Humidity thermal(Fixed)	5℃,95%R.H.,168H	0.2
	Humidity thermal cycle	10~+65℃,95%R.H.,21 cycle,168H	0.2
Mechanical Performance	Vibration	10~55Hz,1.5mm(p-p)	0.1
	Bending	0.9kgf,-90°~+90°,100cycle	0.1
	Torsion	2.5kgf,10times/min,±180°,200times	0.1n
	Anti-tension	90N,10min	0.1
	Dropping	1.5 height, 8 times	0.2
	Repeat	10 Times inserts	0.1
	Durability	>1000times	0.2

2. Mechanical Performance and Working temperature

Content	Character	Unit
Working Temperature	-40~+85	℃
Storage Temperature	-5~+50	℃
Φ3.0 Fibre Curl Radius	>30	mm
Φ3.0 Anti-Tensile Strength	>9.0	Kgf
Main Mechanical Size	SEE LAYOUT	-

3. 3D Index

Type Content	APC	UPC		LC
Radius of Cury(mm)	5-12	10-25		7-25
Apexoffset(um)	0~+50
FiberHeight(nm)	-50~+50
Angle(deg)	7.5~8.5		/		/

Features:

---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;

Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
