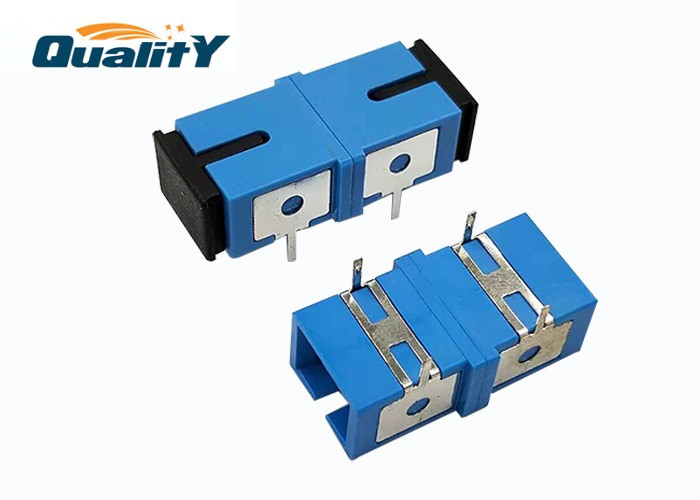

SC Type Simplex UPC Fiber Optic Adapter Operation Temperature -40 ~+75 Degree

Name: SC Type Simplex UPC Fiber Optic Adapter Operation Temperature 40 75 Degree
Brand: QualitY or QY
Price: 1 USD

China SC Type Simplex UPC Fiber Optic Adapter Operation Temperature -40 ~+75 Degree wholesale

Brand Name : QualitY or QY

Model Number : Sc apc adapter with metal foot

Certification : ISO90012015, SGS

Place of Origin : China Dongguan

MOQ : 100pcs for minium order

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 250000pcs per week sc apc adapter with metal foot used for PCB circuit board IL<=0.2dB

Delivery Time : 7 working days

Packaging Details : PE bag or customized package & cartons

Product name : Optic flange adapter coupler SC type simplex UPC fiber optics adapter

Connector Type : SC UPC

Manufacturer : Yes

Insertion loss : < 0.2DB

Sleeve Material : Zirconia

MOQ : 100PCS

Operation Temperature : -40 ~+75 degree

Material : PBT

Contact Now

Single mode flange Low IL SC UPC APC Simplex Optical Fiber Adapter

Description

SC-APC fiber adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
SC-APC fiber optic adapters are flange type in plastic housing; Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.

Features of Adapter SC APC Simplex

-Good repeatability and interchangeability

-Good temperature performance and durability

-High-quality ceramic ferrules Low insertion loss

-High reflection loss size precision

Applications of Adapter SC APC Simplex

-Fiber Optic Telecommunications

-FTTH(Fiber To The Home)

-Data Processing Networkks

-Telecom Equipment

-Local Area Networks

-CATV&CCTV

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC- ST, FC-SC, FC-LC, FC-MU
		SM			MM
		PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85

SC Type Simplex UPC Fiber Optic Adapter Operation Temperature -40 ~+75 Degree

Product Tags:

optical cable adapter

optical cable coupler

SC Type Simplex UPC Fiber Optic Adapter Operation Temperature -40 ~+75 Degree Images
