12 Fibers MPO APC Female to APC Female OS2 Trunk Cable Single Mode

Overview

MPO/MTP patch cords provide the connection to equipment transceivers on switches or servers that use an MPO interface such as the QSFP (SR4). These patch cords can either be added to the end of permanent structured cabling links or they can be used to connect two pieces of equipment directly. MPO/MTP patch cords are supplied as standard with female connectors and a Type B polarity. This configuration is essential when connecting to male (pinned) transceivers not only from a gender perspective, but also from a transmit/receive functionality standpoint. Other configurations are available to suit legacy backbone cabling that requires a male (pinned) patch cord or a Type A polarity.

Features

· High-density fiber array

· High accuracy and high repeatability

· Available with OM4 Multimode fiber (Multimode OM3 also available)

· LSZH jacket

· Female or male MTP MPO connectors

· Factory terminated and tested

Applications

· Data center systems wiring

· Head-end termination to a fiber "backbone"

· Termination of fiber rack systems

· Gigabit Ethernet

· Optical Switch interframe connections

· Parallel optical interconnect between PC Cards and patch panels

· FTTB * Application of high density data center environment * Transceiver systems (40G/100G SFP, SFP+ etc.)

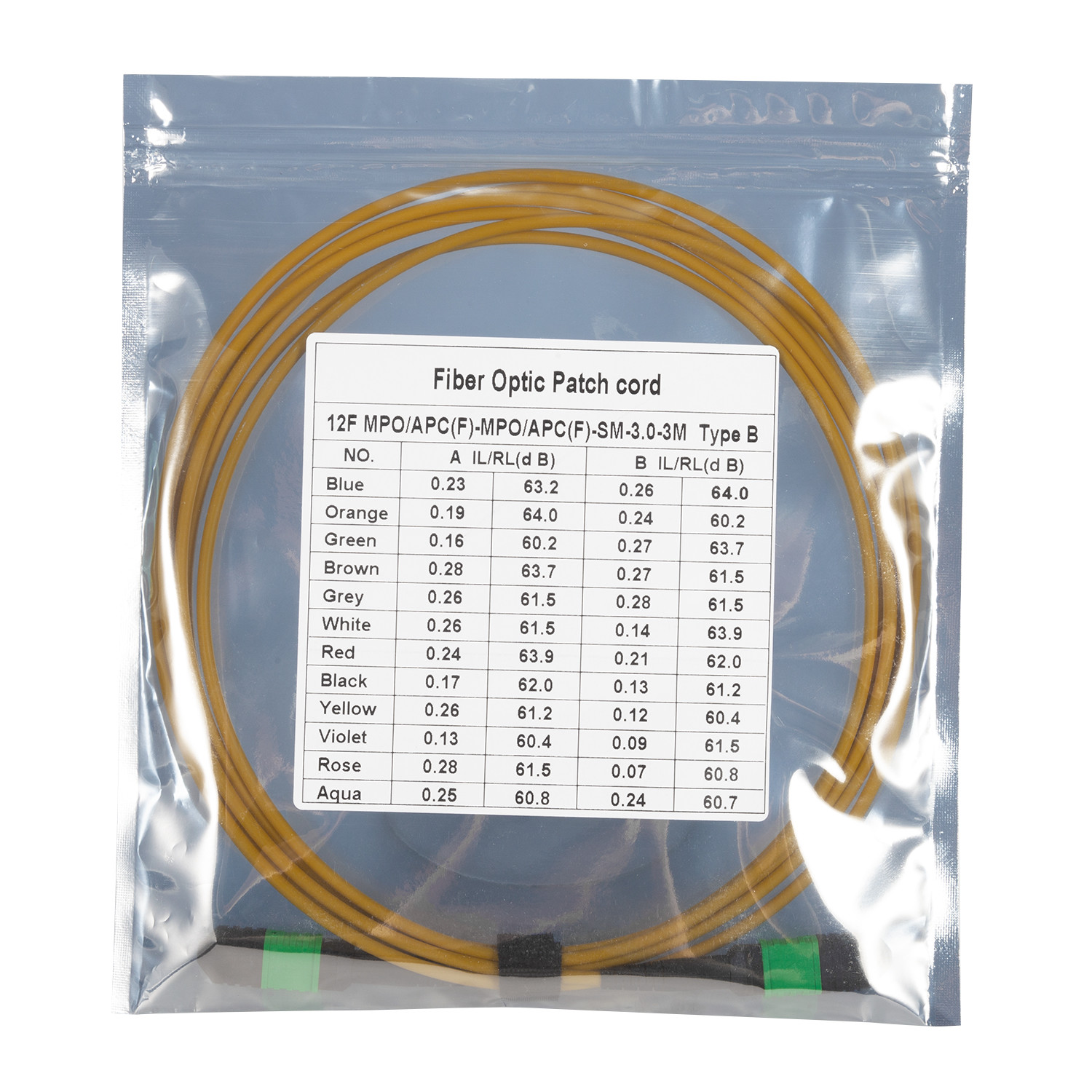

Packing & Labeling

12 Fibers MPO APC to APC Cable

Single Mode MPO to APC Trunk Cable

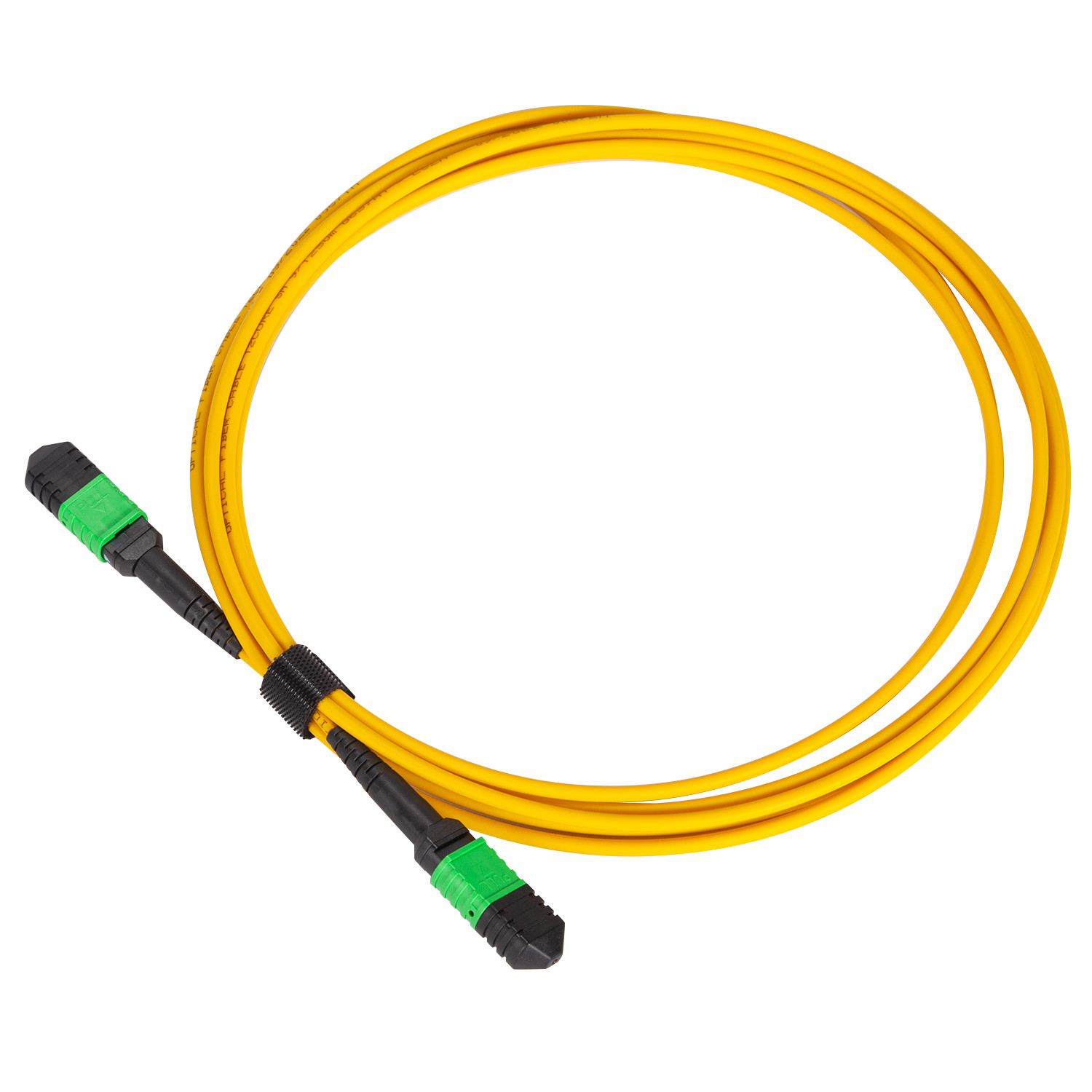

12 Fibers MPO APC Female to APC Female OS2 Trunk Cable Single Mode Images
