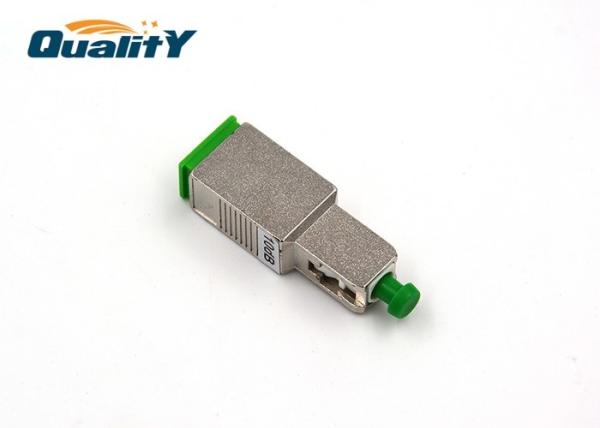

Male To Female Fixed SC APC Attenuator / Singlemode Optic Fiber Attenuator

Name: Male To Female Fixed SC APC Attenuator Singlemode Optic Fiber Attenuator
Brand: QualitY or QY
Price: 1 USD

China Male To Female Fixed SC APC Attenuator / Singlemode Optic Fiber Attenuator wholesale

Brand Name : QualitY or QY

Model Number : QATSC-APC

Certification : IEC ISO9001 2015

Place of Origin : Dongguan China

MOQ : SC APC fiber attenuator 100pcs

Price : Negotiation

Supply Ability : 3000pcs per day

Delivery Time : 8-12 working days

Packaging Details : PE bag or customized package & cartons

Product name : fiber attenuator

Type : Male to Female

Connector : SC

Material : Metal

Attenuation tolerance : 5dB ± 0.5dB,10dB ±1dB,others

Operation temperature : -40 to +80

Application : Telecommunication

Variable : Fixed value

Contact Now

Male to Female Fixed SC APC Attenuator Singlemode optics fibe attenuator

Introduction

Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver. QY can provide female to male (plug type), Bulkhead-fixed value attenuator, in-line attenuator and variable attenuators.

Features

1. Low Insertion Loss and High Return Loss
2. Easy to Handle
3. Environment Stable
4. Customer Defined Specifiication

Applications

1) CATV Fiber Optic Sensor
2) Fiber to Home
3) Telecommunication Networks
4) Local Area Networks(LANs)
5) Test Equipment

Specification

Item	Unit	Parameter
Operating Wavelength	Nm	1310/1550
Attenuation Range	dB	1-10dB(1dB step), 15, 20, 25, 30dB
Return Loss	dB	PC:≥50 UPC: ≥55 APC: ≥60
Attenuation Tolerance	dB	≤1.0 (11-30dB)
Working Temperature	℃	-25℃~+75℃
Storage Temperature	℃	-40℃~+ 85℃

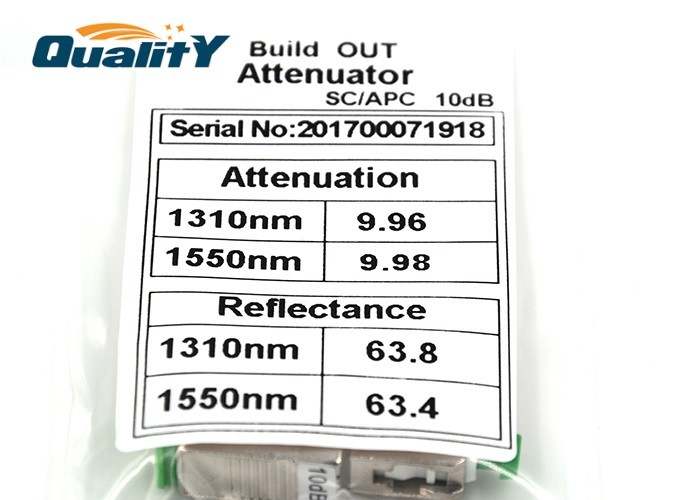

SC APC fiber attenuator Packing

Male To Female Fixed SC APC Attenuator / Singlemode Optic Fiber Attenuator

Product Tags:

Fixed Optical Attenuator

Single Mode Fiber Attenuator

Male To Female Fixed SC APC Attenuator / Singlemode Optic Fiber Attenuator Images
