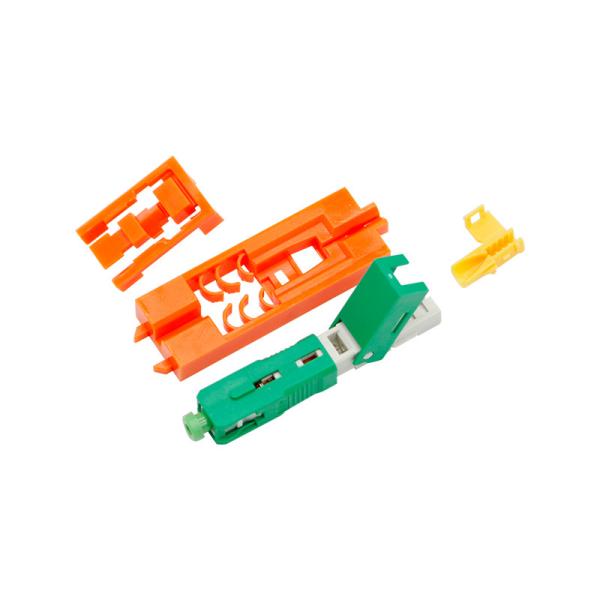

Field Installable Fiber Quick Connector

Name: Field Installable Fiber Quick Connector
Brand: QualitY or QY
Price: 0.53 USD

China Field Installable Fiber Quick Connector wholesale

Brand Name : QualitY or QY

Model Number : QSC52ZJ1-APC

Certification : ISO90012015, SGS

Place of Origin : Dongguan China

MOQ : 100pcs for minium order

Price : 0.53USD-0.72USD per pcs

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000pcs per day

Delivery Time : 8-12 working days

Packaging Details : PE bag or customized package & cartons

Product name : SC/APC field Fiber Optic Fast connector

Brand : QualitY & QY

Connector type : SC APC

Insertion loss : <0.5dB

Return loss : 55db

Color : Green

Manufacturer : Yes

Application : FTTH FTTB FTTX Network

Contact Now

Fiber Optic SC APC Fiber Quick Connector Field Installable Connector

Field Installable Fiber Quick Connector

Overview

QY's SC single piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colours - Beige, Aqua, Violet, Blue and Green options for all Multimode and Singlemode & APC fibre types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing/finishing.

Features

ROHS, CE compliant
High Reliability
Low return losses due to the APC polish
Easy installation due to the SC connector
Effective data transmission
Reliable optical performance

Application

Fibre Optic Cable Distribution network
Fibre To The Home (FTTH) network
Highly stable and reliable performance
High Success Rate design and technology
Reusable termination capability (up to 5x)
Time-saving

Specification

Item Name	Unit	SC/APC Field Installable Connector
Item Name	Unit	Grade S (Standard)	Grade P (Premium)
Fiber Type	um	9/125	9/125 (Corning)
Polishing	---	APC
Insertion Loss	dB	≤0.5	≤0.3
Return Loss	dB	≥50	≥60
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temp.	℃	-25 ~ +70
Durability	times	≥1,000
Reusability	times	≥5
Tensile Strength	N	≥50

Product Tags:

sc fiber optic connector

fiber optic quick connector

SC APC Fiber Quick Connector
