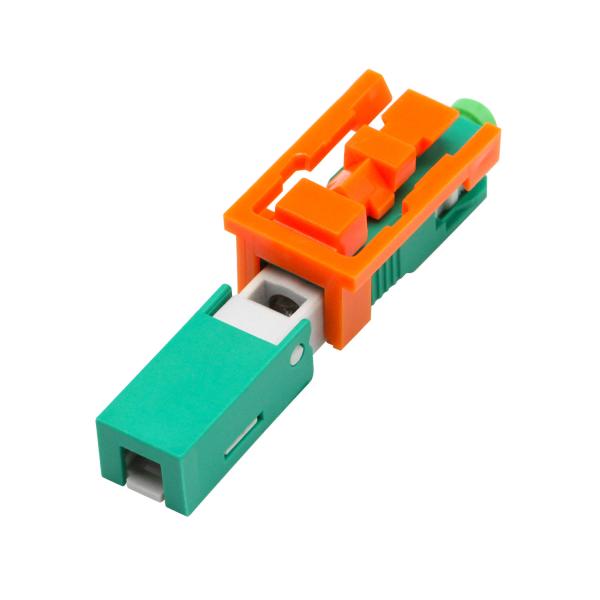

SC / APC Fiber Connectors For FTTH Butterfly 3.0mmx2.0mm Drop Cable

Brand Name : QY

Model Number : QSC50KJ4

Certification : ISO, CE, ROHS

Place of Origin : Dongguan， China

MOQ : 100pcs for minium order

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 10,000pcs per day

Delivery Time : 5-8 working days

Packaging Details : Blister package or PE bag or customized package & cartons

Connector Type : SC

Polishing : APC

Ferrule : Ceramic

Fiber Mode : 9/125μm Singlemode

Cable Diameters : 0.9/2.0/3.0mm

Dimension : 50mm

Insertion Loss : ≤0.35dB

Return Loss : ≥50dB

Tension Test : 900µm 10N, 2.0mm 20N 3.0mm 50N

Temperature : -40 to 75°C

Contact Now

Overview

QY's Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design and reduce the time required for fiber termination. The Fast connector series is a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

SC / APC Fiber Connectors For FTTH Butterfly 3.0mmx2.0mm Drop Cable

Features

• Factory price, can be reused
• Using simple tools without electrical power, no special tools are needed to install
• Easy and fast installation, 30 seconds to learn to install, 90 seconds to operate in the field
• No need for polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
• Fiber aligned in v-groove through the ceramic ferrule
• Low-volatile reliable matching liquid preserved by side cover
• Unique bell-shaped boot maintains the minimum fiber bend radius

Application

FTTH
For the connection between the distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Backbone installation
Data center cabling
Telecommunication network
Industrial & Military

SC / APC Fiber Connectors For FTTH Butterfly 3.0mmx2.0mm Drop Cable
