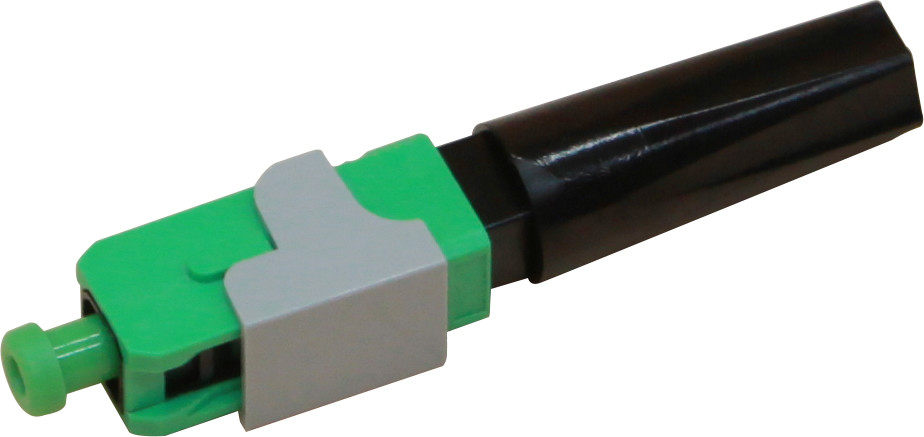

V Groove SC APC 50mm 60mm Fiber Optic Fast Connector

Name: V Groove SC APC 50mm 60mm Fiber Optic Fast Connector
Brand: Qingying( QY)
Price: 1 USD

China V Groove SC APC 50mm 60mm Fiber Optic Fast Connector wholesale

Brand Name : Qingying( QY)

Model Number : QSC51ZJ2-APC

Certification : ISO90012015

Place of Origin : Dongguan China

MOQ : 100pcs for minium order

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000pcs per day

Delivery Time : 7 working days

Packaging Details : PE bag or customized package & cartons

Product Type : SC APC Fast Connector

IL : Max.≤0.5dB, Typical≤0.3dB

Return Loss (dB) : Max.≤-55dB, Typical≤-57dB

Main body length : 51mm

Color : Green

Package details : 45 X 25 X 24 CM:(1000PCS)

Application : FTTA,FTTH,Oil & Ga,Broadcast & Industrial

Operating Temperature : -20⁰C~+75⁰C

Storage Temperature : -40⁰C~+85⁰C

Average Assembling Time : ≤ 3 min

Tensile Strength : >50N

Contact Now

Optical Fiber V Groove Design / SC APC Fiber Optic Quick Fast Connect 50mm, 60mm for Ftth

Description

Field Installable Connector (FIC, also called Fast Connector) is a perfect solution for field termination, and widely used in FTTH market now. FIC are pre-produced in factory, so there is no need to use epoxy, polishing and crimping in field. This makes fiber terminations fast, easy and reliable.

Features

1. FTTH project usable
2. Field installable
3. Insert loss less than 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance

Advantages

1. Low Insertion Loss

2. Dual v groove design for high stability and reliability

3. Durable life

4. Easy installation

5. OEM service for accessories

Application

FTTH
CATV
LANs
WANs
Urgent Repair
Telecommunication Networks
Premise installations

Specification

Item No.	Item Name	Spec. Value
1	Insertion Loss (dB)	Max.≤0.5dB, Typical≤0.3dB
2	Return Loss (dB)	Max.≤-55dB, Typical≤-57dB
3	Ferrule End Face	No scratches at 400X
4	3D Interferometry	Complies to IEC 2009
5	Average Assembling Time	≤ 3 min
6	First-Time Done Yield Rate	≥ 95%
7	Re-Operation Times	Max. 5 times
8	Repeatability (±0.2dB)	≥ 90%
9	Appearance	No Defects
10	Tensile Strength	>50N

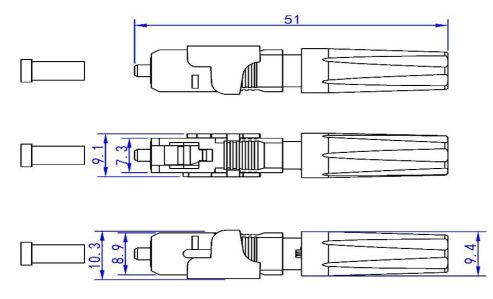

Structure

V Groove SC APC 50mm 60mm Fiber Optic Fast Connector

FAQ

Q1: How do you guarantee the quality?

A1: We are an ISO certified factory

A2: We always start with pilot production to confirm everything complied with customers’ spec.

A3: In mass production, we have strictly IQC, IPQC, and FQC processes to confirm the quality of final products

A4: Before shipment, we also accept the customer's inspector to confirm the quality of goods.

Q2: Can you factory pass the factory audit?

A2: Yes, we welcome factory audit and we could pass it dut to we already are an ISO certified factory.

Q3: What's the product's lead time?

A3: It depends. For the sample below 5pcs, the lead time is usually 1 day, and for bulk production, the time will be 5-30 days

after receiving the deposit.

Q4: Can I have my own logo on the products?

A4: Yes, we welcome the custom-made logo. The logo could be stamped, lasered, and engraved.

Q5: What's your payment term?

A5: Our payment term is 30% deposit, and 70% balance before shipment.

Q6: Do you offer any other goods?

A6:Yes. Our factory mainly offers fast connectors, adapters, patch cords, attenuators, plc splitters, etc. However, we serve all

requests from customers with pleasure.
